IntegraCAD module

Selection of radiators

Radiator selection for two-pipe and one-pipe heating systems.

Based on the calculated heat losses, the module selects radiators for each room from the equipment catalogue, taking into account the system temperatures and the connection type.

The selected radiators are passed on to the heating pipeline calculation and to the bill of materials.

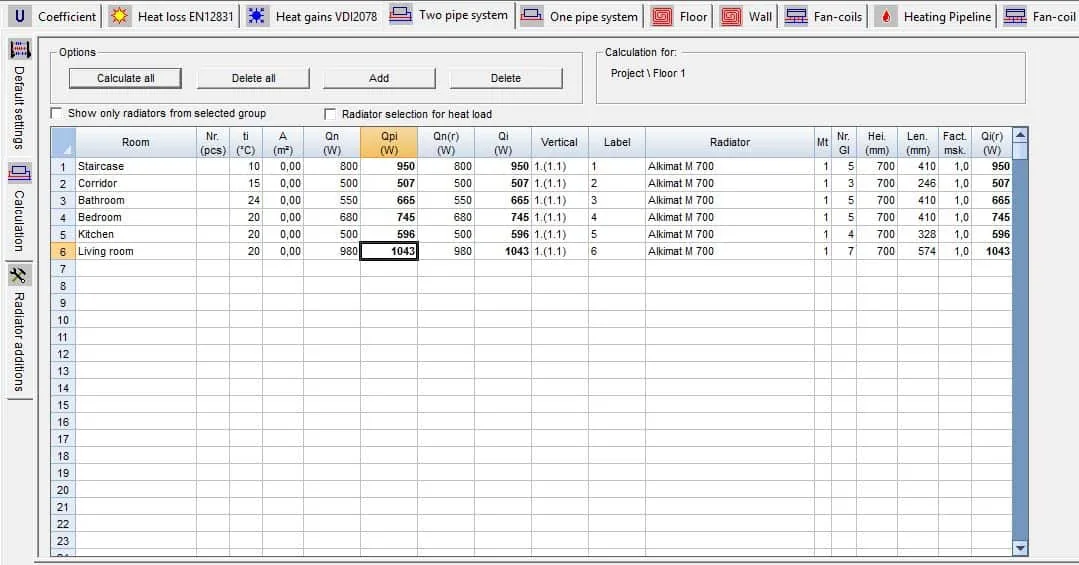

Selection of radiators – IntegraCAD screenshot
Click the screenshot to open it in full size.
