IntegraCAD module

Heat gains

Cooling load calculation according to VDI 2078.

The module calculates heat gains for each room through the day, including the hourly course of the cooling load, using the same building and construction data as the heat losses module.

The results are used for selecting fan-coils and for floor and wall cooling.

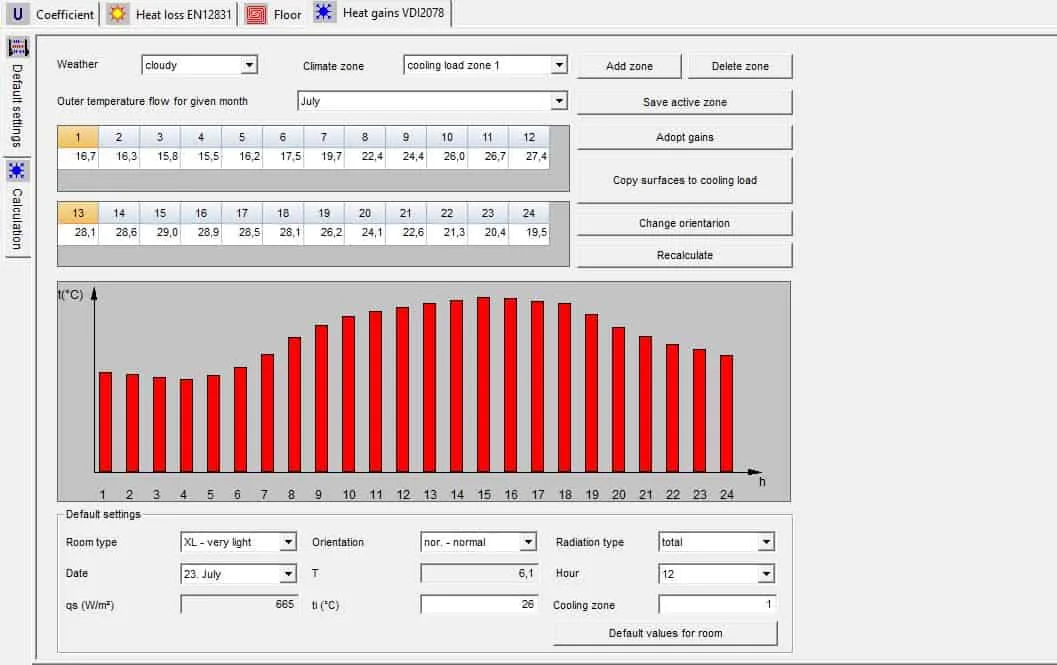

Heat gains – IntegraCAD screenshot
Click the screenshot to open it in full size.
